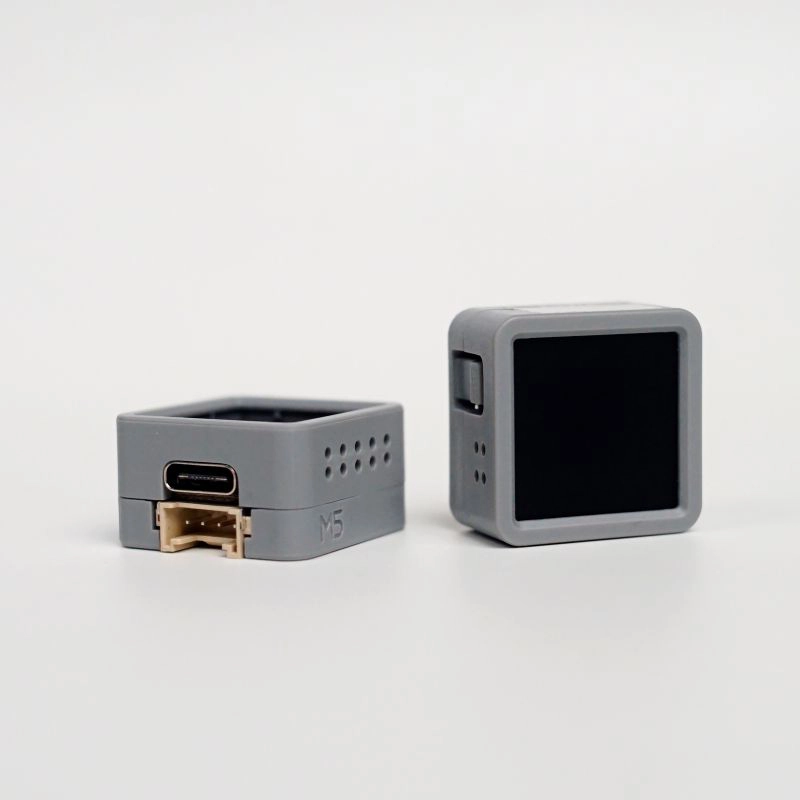

M5Stack Atom Matrix Rust Examples (no_std)

This repository provides no_std Rust examples for the M5Stack Atom Matrix board. The examples demonstrate how to interact with the device's LED matrix and other peripherals using Rust in a bare-metal environment.

Key Features:

• no_std Support: Designed for embedded systems, avoiding the standard library.
• Clear Examples: Step-by-step examples for common functionalities.
• Easy Setup: Comprehensive instructions for getting started.

Resources:

• M5Stack Atom Matrix Documentation

Quick Start

1. Clone the Repository:

   git clone [https://github.com/hahihula/m5stack-atom-matrix-rust-examples.git](https://github.com/hahihula/m5stack-atom-matrix-rust-examples.git)
   cd m5stack-atom-matrix-rust-examples

2. Build and Flash the led_matrix Example:

   cargo build --release --example led_matrix
   cargo espflash flash --release --example led_matrix

3. Monitor Serial Output (Optional):

   cargo espflash monitor

Detailed Setup

If you don't have Rust and the necessary tools installed, follow these steps:

1. Install Rust and Nightly Toolchain

1. Install Rustup:

   • Visit rustup.rs and follow the installation instructions for your operating system.

2. Add the Nightly Toolchain:

   rustup toolchain install nightly
   rustup default nightly

3. Add the Xtensa Target:

   rustup target add xtensa-esp32-none-elf

2. Install espup and ESP-IDF

1. Install espup:

   cargo install espup

2. Install ESP-IDF:

   espup install

   • Follow the prompts to install the required ESP-IDF components.

3. Install cargo-espflash

1. Install cargo-espflash:

   cargo install cargo-espflash

2. Verify Installation:

   cargo espflash --version

4. Clone and Build

1. Clone the Repository:

   git clone [https://github.com/hahihula/m5stack-atom-matrix-rust-examples.git](https://github.com/hahihula/m5stack-atom-matrix-rust-examples.git)
   cd m5stack-atom-matrix-rust-examples

2. Connect the M5Stack Atom Matrix:

   • Connect the device to your computer via USB-C.

3. Build and Flash Examples:

   • For example, to build and flash the led_matrix example:

     cargo build --release --example led_matrix
     cargo espflash flash --release --example led_matrix

4. Monitor Serial Output (Optional):

   • To view serial output:

     cargo espflash monitor

Examples

• led_matrix: Basic LED matrix control.
  • Build and flash: cargo espflash flash --release --example led_matrix

Contributing

Contributions are welcome! If you have any examples or improvements, feel free to submit a pull request.

License

MIT
