This README file goes through detailed step by step method to integrate a microcontroller board(STM32F407) with Azure Cloud(IoT Hub).
. .
Please note:
This project is still under progress(as of 23rd of October). Cross compiler is built on Ubuntu 22.04 machine.
. .
The project could be broken down into four major parts. Briefly explained as:
A. Make STM32F407 understand MicroPython, so that MicroPython code could be run on it.
B. Use external PHY device DP83848PHY, connect to STM and setup IP connectivity to the outside world. This is because of the non-availability of Wifi or on-board ethernet port.
C. Configure MQTT telemtery protocol and program the board to send user button clicks. Do the same on Azure IoT hub to receive those clicks.
D. Use Azure IoT Explorer to discover and monitor the MQTT telemetry messages sent from STM board.
. . .
. . .
. . .
A. First Step(followed from https://github.com/micropython/micropython):
A.1. Download micropython from (https://micropython.org/download/) for Linux based hosts.
A.2. Unzip the downloaded .tar.xz file using "tar -xvf micropython-1.19.1.tar.xz" for example. This gave me a folder "micropython-1.19.1".
A.3. 'make' (meaning build) MicroPython cross-compiler(compiles .py scripts into .mpy files.)
Before running 'make' in mpy-cross folder, it had below contents.
ls
gccollect.c main.c Makefile mpconfigport.h mphalport.h mpy-cross.vcxproj qstrdefsport.h README.md
After running 'make' in mpy-cross folder, it has now below files/folders
ls
build gccollect.c main.c Makefile mpconfigport.h mphalport.h mpy-cross mpy-cross.map mpy-cross.vcxproj qstrdefsport.h README.md
A.4. An ARM compiler is required for the build
Inside Ubuntu, open a terminal and input
"sudo add-apt-repository ppa:team-gcc-arm-embedded/ppa"
"sudo apt-get update"
Continue to input to install toolchain
sudo apt-get install gcc-arm-none-eabi
A.5. make(meaning build) the Micropython for a microcontroller board(BOARD=STM32F4DISC),(ran inside /micropython-1.19.1/ports/stm32/ folder)
"make BOARD=STM32F4DISC"
This gave me a new folder 'build-STM32F4DISC' with below files and folders.
ls
accel.o drivers firmware.elf i2c.P machine_i2s.P modstm_qstr.h pin_named_pins.o pyb_can.P rtc.P stm32_it.P usbd_conf.o
accel.P eth.o firmware.hex irq.o machine_spi.o modutime.o pin_named_pins.P pyb_i2c.o sdcard.o storage.o usbd_conf.P
adc.o eth.P firmware.map irq.P machine_spi.P modutime.P pin.o pyb_i2c.P sdcard.P storage.P usbd_desc.o
adc.P extint.o flashbdev.o lcd.o machine_timer.o mphalport.o pin.P pyb_spi.o sdram.o system_stm32.o usbd_desc.P
boardctrl.o extint.P flashbdev.P lcd.P machine_timer.P mphalport.P pins_af.py pyb_spi.P sdram.P system_stm32.P usbdev
boardctrl.P extmod flash.o led.o machine_uart.o mpnetworkport.o pins_qstr.h pybthread.o s servo.o systick.o usbd_hid_interface.o
bufhelper.o factoryreset.o flash.P led.P machine_uart.P mpnetworkport.P pins_STM32F4DISC.c pybthread.P servo.P systick.P usbd_hid_interface.P
bufhelper.P factoryreset.P frozen_content.c lib main.o mpthreadport.o pins_STM32F4DISC.o qspi.o shared timer.o usbd_msc_interface.o
build-STM32F4DISC fatfs_port.o frozen_mpy machine_adc.o main.P mpthreadport.P pins_STM32F4DISC.P qspi.P softtimer.o timer.P usbd_msc_interface.P
can.o fatfs_port.P gccollect.o machine_adc.P modmachine.o network_lan.o powerctrlboot.o resethandler.o softtimer.P uart.o usb.o
can.P fdcan.o gccollect.P machine_bitstream.o modmachine.P network_lan.P powerctrlboot.P rfcore.o spibdev.o uart.P usb.P
dac.o fdcan.P genhdr machine_bitstream.P modpyb.o pendsv.o powerctrl.o rfcore.P spibdev.P ulpi.o usrsw.o
dac.P firmware0.bin help.o machine_i2c.o modpyb.P pendsv.P powerctrl.P rng.o spi.o ulpi.P usrsw.P
dma.o firmware1.bin help.P machine_i2c.P modstm.o pin_defs_stm32.o py rng.P spi.P usbd_cdc_interface.o wdt.o
dma.P firmware.dfu i2c.o machine_i2s.o modstm.P pin_defs_stm32.P pyb_can.o rtc.o stm32_it.o usbd_cdc_interface.P wdt.P
A.5. make the mboot(ran inside /micropython-1.19.1/ports/stm32). Meaning build the mbootloader
"make -C mboot BOARD=STM32F4DISC"
THis gave below built files
ls (ran under micropython-1.19.1/ports/stm32/mboot/build-STM32F4DISC)
drivers elem.P firmware.dfu firmware.hex fsload.o genhdr gzstream.P main.o pack.o pins_af.py ports sdcard.P ui.o vfs_fat.o vfs_lfs.o
elem.o firmware.bin firmware.elf firmware.map fsload.P gzstream.o lib main.P pack.P pins_STM32F4DISC.c sdcard.o shared ui.P vfs_fat.P vfs_lfs.P
Notice the firmware.dfu file. This Device Firmware Upgrade(DFU) file will be used to write to the firmware( flash the firmware !!)
A.6. Install the dfu utility(dfu-util). This utility will help to flash the above seen .dfu file into the STM board.
"apt-get install dfu-util
A.7 Create a file named "49-stmdiscovery.rules" to the following location "/etc/udev/rules.d/", with following contents.
# f055:9800 - STM32F4 Discovery running MicroPython in USB Serial Mode (CN5)
ATTRS{idVendor}=="f055", ATTRS{idProduct}=="9800", ENV{ID_MM_DEVICE_IGNORE}="1"
ATTRS{idVendor}=="f055", ATTRS{idProduct}=="9800", ENV{MTP_NO_PROBE}="1"
SUBSYSTEMS=="usb", ATTRS{idVendor}=="f055", ATTRS{idProduct}=="9800", MODE:="0666"
KERNEL=="ttyACM*", ATTRS{idVendor}=="f055", ATTRS{idProduct}=="9800", MODE:="0666"
# 0483:df11 - STM32F4 Discovery in DFU mode (CN5)
SUBSYSTEMS=="usb", ATTRS{idVendor}=="0483", ATTRS{idProduct}=="df11", MODE:="0666"
Notice above, Vendor ID and Product ID attributes 0483:df11 respectively, will be used to discover the microcontroller, firmware booted with .dfu file.
After adding the file. Reload the added rules:
"sudo udevadm control --reload-rules"
A.8 Put the board in DFU mode. To do this, you need to make BOOT0 high(connect physically BOOT0 to VDD(3v) on STM32board), and BOOT1 low(no need to do anything about this), and reset the board.
A.9 List the attached dfu capable devices using:
dfu-util -l
.
.
dfu-util 0.9
Copyright 2005-2009 Weston Schmidt, Harald Welte and OpenMoko Inc.
Copyright 2010-2016 Tormod Volden and Stefan Schmidt
This program is Free Software and has ABSOLUTELY NO WARRANTY
Please report bugs to http://sourceforge.net/p/dfu-util/tickets/
dfu-util: Cannot open DFU device 04f2:b724
Ubuntu machine was rebooted to detect the STM board in dfu mode.
lsusb
Bus 006 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub
Bus 005 Device 003: ID 0489:e0cd Foxconn / Hon Hai Wireless_Device
Bus 005 Device 002: ID 06cb:00bd Synaptics, Inc. Prometheus MIS Touch Fingerprint Reader
Bus 005 Device 004: ID 0483:374b STMicroelectronics ST-LINK/V2.1
Bus 005 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub
Bus 004 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub
Bus 003 Device 002: ID 0483:df11 STMicroelectronics STM Device in DFU Mode << STM in DFU mode
Bus 003 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub
Bus 002 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub
Bus 001 Device 002: ID 04f2:b724 Chicony Electronics Co., Ltd Integrated Camera
Bus 001 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub
dfu-util -l
.
.
dfu-util 0.9
Copyright 2005-2009 Weston Schmidt, Harald Welte and OpenMoko Inc.
Copyright 2010-2016 Tormod Volden and Stefan Schmidt
This program is Free Software and has ABSOLUTELY NO WARRANTY
Please report bugs to http://sourceforge.net/p/dfu-util/tickets/
dfu-util: Cannot open DFU device 04f2:b724
Found DFU: [0483:df11] ver=2200, devnum=2, cfg=1, intf=0, path="3-2", alt=3, name="@Device Feature/0xFFFF0000/01*004 e", serial="326237753036"
Found DFU: [0483:df11] ver=2200, devnum=2, cfg=1, intf=0, path="3-2", alt=2, name="@OTP Memory /0x1FFF7800/01*512 e,01*016 e", serial="326237753036"
Found DFU: [0483:df11] ver=2200, devnum=2, cfg=1, intf=0, path="3-2", alt=1, name="@Option Bytes /0x1FFFC000/01*016 e", serial="326237753036"
Found DFU: [0483:df11] ver=2200, devnum=2, cfg=1, intf=0, path="3-2", alt=0, name="@Internal Flash /0x08000000/04*016Kg,01*064Kg,07*128Kg", serial="326237753036"
A.10 Upload DFU into STM32F4 board using dfu-util with the board in DFU mode as seen in step A.8. Correspoding argument meaning are added below.
"sudo dfu-util -a 0 -d 0483:df11 -D build-STM32F4DISC/firmware.dfu"
a(alt-setting=0 (?))
-d(device 0483:df11 ,is connected to STM micro-usb port)
-D(download- Write firmware from build-STM32F4DISC/firmware.dfu into device(0483:df11).
dfu-util 0.9
Copyright 2005-2009 Weston Schmidt, Harald Welte and OpenMoko Inc.
Copyright 2010-2016 Tormod Volden and Stefan Schmidt
This program is Free Software and has ABSOLUTELY NO WARRANTY
Please report bugs to http://sourceforge.net/p/dfu-util/tickets/
Opening DFU capable USB device...
ID 0483:df11
Run-time device DFU version 011a
Claiming USB DFU Interface...
Setting Alternate Setting #0 ...
Determining device status: state = dfuERROR, status = 10
dfuERROR, clearing status
Determining device status: state = dfuIDLE, status = 0
dfuIDLE, continuing
DFU mode device DFU version 011a
Device returned transfer size 2048
DfuSe interface name: "Internal Flash "
file contains 1 DFU images
parsing DFU image 1
image for alternate setting 0, (2 elements, total size = 334808)
parsing element 1, address = 0x08000000, size = 14608
Download [=========================] 100% 14608 bytes
Download done.
parsing element 2, address = 0x08020000, size = 320184
Download [=========================] 100% 320184 bytes
Download done.
done parsing DfuSe file
Microcontroller board is listed as a flash drive
We could see that the .dfu image was copied successfully into STM32 board. At this point, Ubuntu could not see the flash drive of the Pyboard.
lsblk
NAME MAJ:MIN RM SIZE RO TYPE MOUNTPOINTS
loop0 7:0 0 4K 1 loop /snap/bare/5
loop1 7:1 0 62M 1 loop /snap/core20/1611
loop2 7:2 0 63.2M 1 loop /snap/core20/1623
loop4 7:4 0 238.1M 1 loop /snap/firefox/1918
loop5 7:5 0 346.3M 1 loop /snap/gnome-3-38-2004/115
loop6 7:6 0 346.3M 1 loop /snap/gnome-3-38-2004/119
loop7 7:7 0 91.7M 1 loop /snap/gtk-common-themes/1535
loop8 7:8 0 37.1M 1 loop /snap/hunspell-dictionaries-1-7-2004/2
loop9 7:9 0 45.9M 1 loop /snap/snap-store/592
loop10 7:10 0 45.9M 1 loop /snap/snap-store/599
loop11 7:11 0 48M 1 loop /snap/snapd/16778
loop12 7:12 0 48M 1 loop /snap/snapd/17029
loop13 7:13 0 284K 1 loop /snap/snapd-desktop-integration/14
loop14 7:14 0 236.8M 1 loop /snap/firefox/1943
sda 8:0 1 1M 0 disk /media/abin/DIS_F407VG
nvme0n1 259:0 0 476.9G 0 disk
├─nvme0n1p1 259:1 0 260M 0 part /boot/efi
├─nvme0n1p2 259:2 0 16M 0 part
├─nvme0n1p3 259:3 0 225.7G 0 part
├─nvme0n1p4 259:4 0 1000M 0 part
└─nvme0n1p5 259:5 0 250G 0 part /var/snap/firefox/common/host-hunspell
This time a reset on the board, by pressing on black reset button helped to get the Pyboard flash get detected in Ubuntu.
NAME MAJ:MIN RM SIZE RO TYPE MOUNTPOINTS
loop0 7:0 0 4K 1 loop /snap/bare/5
loop1 7:1 0 62M 1 loop /snap/core20/1611
loop2 7:2 0 63.2M 1 loop /snap/core20/1623
loop4 7:4 0 238.1M 1 loop /snap/firefox/1918
loop5 7:5 0 346.3M 1 loop /snap/gnome-3-38-2004/115
loop6 7:6 0 346.3M 1 loop /snap/gnome-3-38-2004/119
loop7 7:7 0 91.7M 1 loop /snap/gtk-common-themes/1535
loop8 7:8 0 37.1M 1 loop /snap/hunspell-dictionaries-1-7-2004/2
loop9 7:9 0 45.9M 1 loop /snap/snap-store/592
loop10 7:10 0 45.9M 1 loop /snap/snap-store/599
loop11 7:11 0 48M 1 loop /snap/snapd/16778
loop12 7:12 0 48M 1 loop /snap/snapd/17029
loop13 7:13 0 284K 1 loop /snap/snapd-desktop-integration/14
loop14 7:14 0 236.8M 1 loop /snap/firefox/1943
sda 8:0 1 1M 0 disk /media/abin/DIS_F407VG
sdb 8:16 1 240K 0 disk
└─sdb1 8:17 1 112K 0 part /media/abin/PYBFLASH << second flash drive
nvme0n1 259:0 0 476.9G 0 disk
├─nvme0n1p1 259:1 0 260M 0 part /boot/efi
├─nvme0n1p2 259:2 0 16M 0 part
├─nvme0n1p3 259:3 0 225.7G 0 part
├─nvme0n1p4 259:4 0 1000M 0 part
└─nvme0n1p5 259:5 0 250G 0 part /var/snap/firefox/common/host-hunspell
lsusb
Bus 006 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub
Bus 005 Device 003: ID 0489:e0cd Foxconn / Hon Hai Wireless_Device
Bus 005 Device 002: ID 06cb:00bd Synaptics, Inc. Prometheus MIS Touch Fingerprint Reader
Bus 005 Device 005: ID 0483:374b STMicroelectronics ST-LINK/V2.1 <<1(connected via mini-usb port on board)
Bus 005 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub
Bus 004 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub
Bus 003 Device 003: ID f055:9800 MicroPython Pyboard Virtual Comm Port in FS Mode <<2 (THis was in DFU mode, before second reset, micro-usb on board)
Bus 003 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub
Bus 002 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub
Bus 001 Device 002: ID 04f2:b724 Chicony Electronics Co., Ltd Integrated Camera
Bus 001 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub

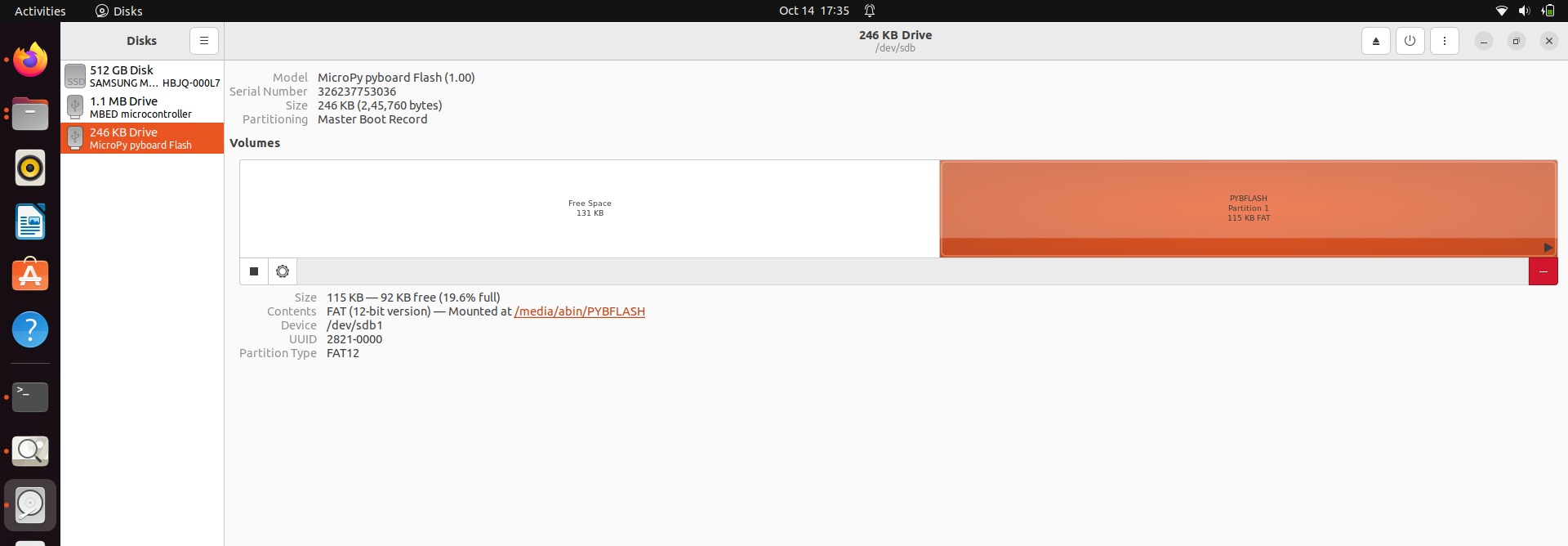

The Pyboard is seen in Disk Manager.
Executing dfu-util list command, does not show the dfu capable device. This is correct. STM board is no more in DFU mode, it is in FS mode.
dfu-util -l
dfu-util 0.9
Copyright 2005-2009 Weston Schmidt, Harald Welte and OpenMoko Inc.
Copyright 2010-2016 Tormod Volden and Stefan Schmidt
This program is Free Software and has ABSOLUTELY NO WARRANTY
Please report bugs to http://sourceforge.net/p/dfu-util/tickets/
dfu-util: Cannot open DFU device 04f2:b724
A.11 Testing if MicroPython is accessible by turning on a LED on STM32 board.
Knowing the available tty ports is important.
sudo dmesg | grep tty
[ 0.089570] printk: console [tty0] enabled
[ 47.347642] cdc_acm 5-2:1.2: ttyACM0: USB ACM device
[10178.960329] cdc_acm 5-2:1.2: ttyACM0: USB ACM device
[10200.309347] cdc_acm 3-2:1.1: ttyACM1: USB ACM device <<ACM1 worked
Using rshell to access the board. Install rshell
sudo apt-get install rshell
Run rshell by using tty port ttyACM1
sudo python3 -m rshell.main -p /dev/ttyACM1
Using buffer-size of 512
Connecting to /dev/ttyACM1 (buffer-size 512)...
Trying to connect to REPL connected
Retrieving sysname ... pyboard
Testing if ubinascii.unhexlify exists ... Y
Retrieving root directories ... /flash/
Setting time ... Oct 14, 2022 18:34:49
Evaluating board_name ... pyboard
Retrieving time epoch ... Jan 01, 2000
Welcome to rshell. Use Control-D (or the exit command) to exit rshell.
Entered repl !!!
/home/abin/Downloads/micropython-1.19.1> repl
Entering REPL. Use Control-X to exit.
>
MicroPython v1.19.1 on 2022-10-14; F4DISC with STM32F407
Type "help()" for more information.
>>
>>
>> pyb.LED(1).on()
This turned ON one of the LED on STM32board.
