Custom Header Searching and Correlation

This article describes the process and steps required to extract custom SIP X-headers for search and correlation purposes.

1. Add Custom Header in heplify-server

X-Headers are extracted at the capture layer by heplify-server and converted to HEP header fields.

• Correlation Only Headers which do not require search should be "normalized" to correlation_id headers using AlegIDs
• Search + Correlation Headers which require full indexing should be extracted using CustomHeader

Edit /etc/heplify-server.toml

add custom header information

AlegIDs               = ["XCallID"] # Custom Header(s) will be used as Correlation ID (first match)
ForceALegID           = true        # Enable search for A Leg Headers. default is false
CustomHeader          = ["X-CID","XCallID"] # Custom Headers will be Indexed for Header search

restart heplify-server

systemctl restart heplify-server.service

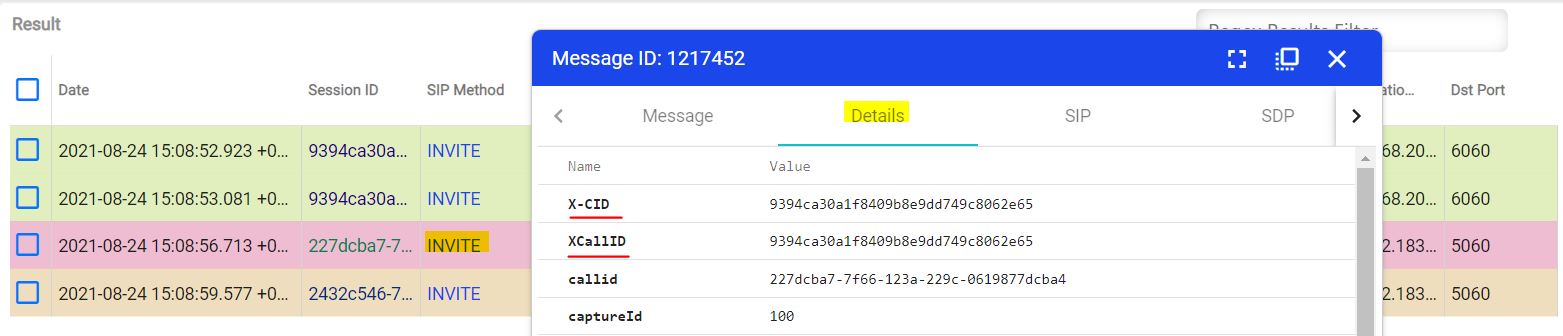

Now you will be able to see the custom X-headers in Packet details. Click on INVITE packet and then go to Details

2. Add Mappings in homer-app

Each header in SIP is mapped to a name in the schema to view/search in Homer UI, which is referred to as Mapping. For each custom header, we have to add new mapping accordingly.

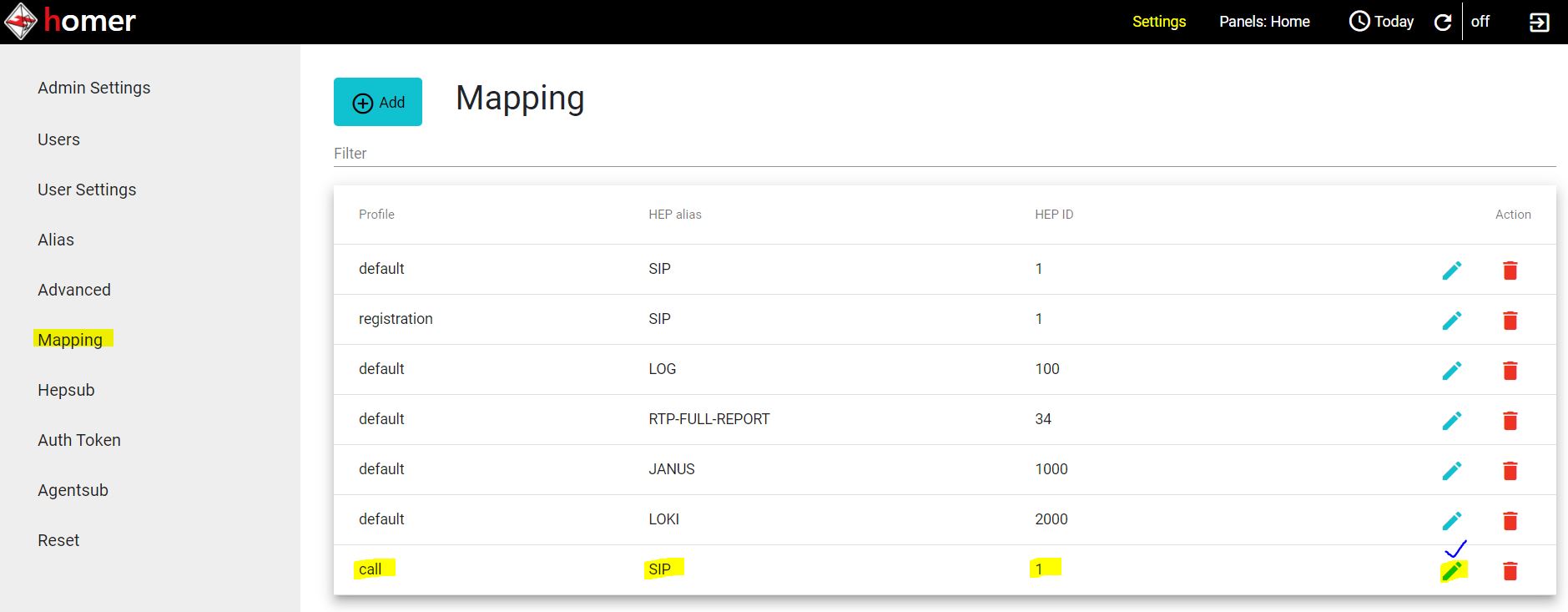

Go to Settings in homer UI and click on Mapping, Edit profile 'call' with HEP ID '1'.

There will be two kinds of Mapping

1. Correlation Mapping: Defines any cross-protocol correlation mechanism
2. Fields Mapping: Defines schema and mapping for protocol fields

Go to Fields Mapping

Add the following at end of Fields Mapping

    {
        "id": "data_header.X-CID",
        "name": "X-CID",
        "type": "string",
        "index": "none",
        "form_type": "input",
        "position": 25,
        "skip": false,
        "hide": true
    },
    {
        "id": "data_header.XCallID",
        "name": "XCallID",
        "type": "string",
        "index": "none",
        "form_type": "input",
        "position": 26,
        "skip": false,
        "hide": true
    }

3. Call SIP Search Widget Settings

Go to Home screen of homer. Eidt settings of Call SIP Search widget.

Move X-CID and XCallID to active list.

4. Search with Custom Header

now you will be able to search with a custom Header field.

Note: Custom Header search will work with new calls only.

---

Full Example for 2-way correlation

Mapping

[
    {
       "source_field": "data_header.callid",
        "lookup_id": 1,
        "lookup_profile": "call",
        "append_sid": true,
        "lookup_field": "data_header->>'X-CID'",
        "lookup_range": [
            -300,
            200
        ]
    },
    {
        "source_field": "data_header.X-CID",
        "lookup_id": 1,
        "lookup_profile": "call",
        "append_sid": true,
        "lookup_field": "data_header->>'X-CID'",
        "lookup_range": [
            -300,
            200
        ]
    },
    {
        "source_field": "data_header.X-CID",
        "lookup_id": 1,
        "lookup_profile": "call",
        "append_sid": true,
        "lookup_field": "data_header->>'callid'",
        "lookup_range": [
            -300,
            200
        ]
    },
    {
        "source_field": "data_header.callid",
        "lookup_id": 1,
        "lookup_profile": "call",
        "lookup_field": "sid",
        "lookup_range": [
            -300,
            200
        ]
    }
]

Field Modification

Fields can be modified and extended using the input_function_js functionality. The following example extends an extracted callid with _b2b-1

 {
        "source_field": "data_header.callid",
        "lookup_id": 1,
        "lookup_profile": "call",
        "lookup_field": "sid",
        "input_function_js": "var returnData=[]; for (var i = 0; i < data.length; i++) { returnData.push(data[i]+'_b2b-1'); }; returnData;"
        "lookup_range": [
            -300,
            200
        ]
    }

Or multiple prefixes and suffixes SBC- , _PBX-1

 {
        "source_field": "data_header.callid",
        "lookup_id": 1,
        "lookup_profile": "call",
        "lookup_field": "sid",
        "input_function_js": "var returnData=[]; for (var i = 0; i < data.length; i++) { returnData.push('SBC-'+data[i]); returnData.push(data[i]+'_PBX-1'); }; returnData;"
        "lookup_range": [
            -300,
            200
        ]
    }
