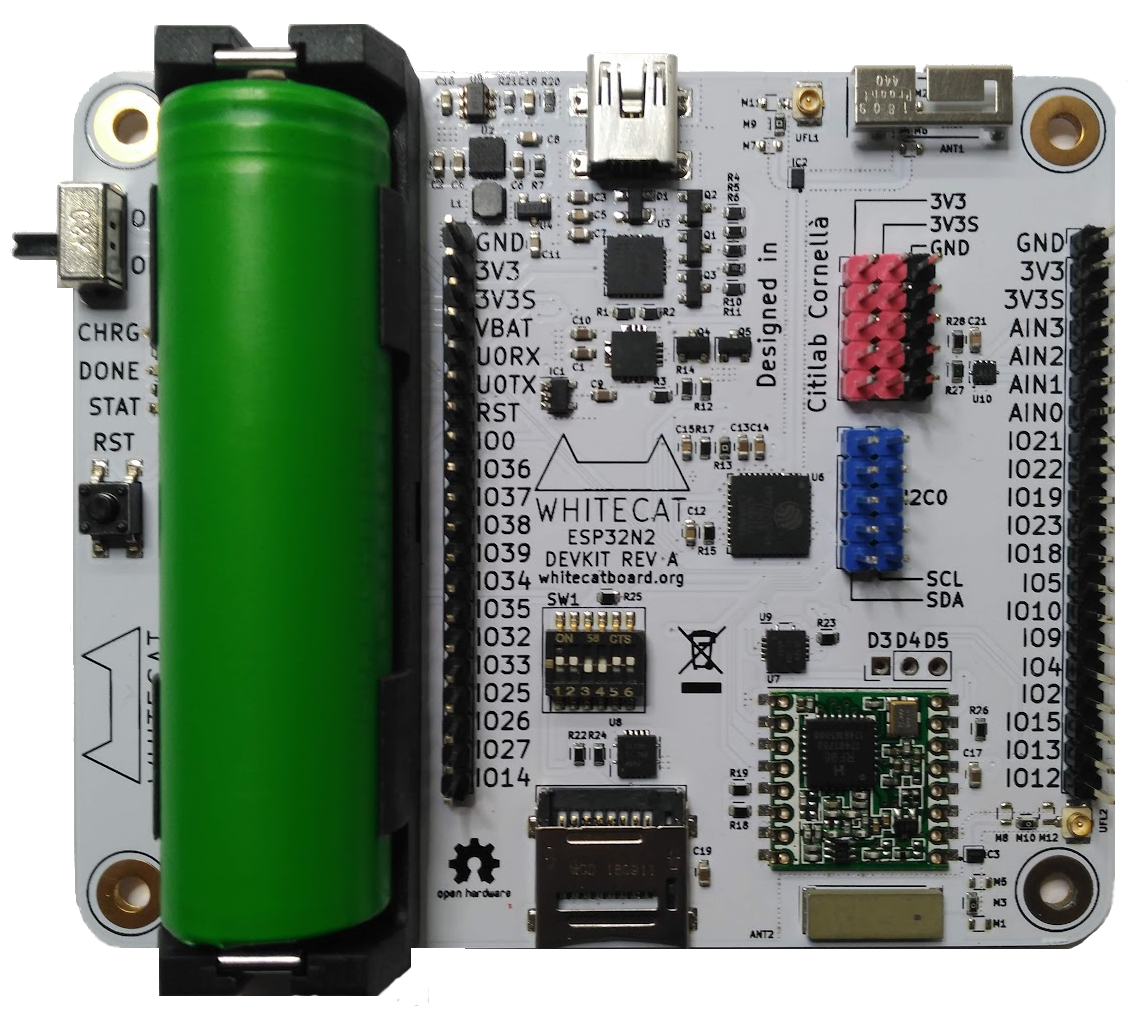

Whitecat ESP32 N2 DEVKIT
This board integrates powerful processing, multiple wireless communication interfaces, and flexible power management in a compact design, making it ideal for IoT applications, remote sensing, and edge computing.
Powered by a dual-core Tensilica LX6 microprocessor running up to 240 MHz, it provides 520 KB SRAM and 4 MB Flash memory for reliable performance. With integrated LoRaWAN, Wi-Fi, Bluetooth, and USB connectivity, as well as support for 18650 Li-Ion batteries and SD storage, the board offers a versatile platform for both prototyping and deployment.
It's compatible with Lua RTOS, The Whitecat IDE, and any esp-idf based solution.
Features:
- Dual-core Tensilica LX6 microprocessor
- Up to 240MHz clock frequency configurable by software
- 520KB internal SRAM
- 4MB Flash memory
- Integrated USB-to-UART bridge
- Integrated LoRaWAN transceiver working in the 868 (EU) MHz / 915 (USA) MHz, with onboard antenna, and UFL connector for external antenna
- Integrated 802.11 BGN Wi-Fi transceiver, with onboard antenna, and UFL connector for external antenna
- Integrated dual-mode Bluetooth (classic and BLE)
- Second voltage regulator for power on / power off sensors through a dedicated GPIO
- Battery charger with system load sharing and battery polarity protection
- 18650 Li-Ion battery socket
- Integrated buck-boost 3.3V
- USB-C connector, able to charge the battery, and program / debug the board
- 4 additional ADC ports
- MicroSD card socket
